Storing OpenAI embeddings in Postgres with pgvector

2023-02-06

14 minute read

Storing OpenAI embeddings in Postgres with pgvector

A new PostgreSQL extension is now available in Supabase: pgvector, an open-source vector similarity search.

The exponential progress of AI functionality over the past year has inspired many new real world applications. One specific challenge has been the ability to store and query embeddings at scale. In this post we'll explain what embeddings are, why we might want to use them, and how we can store and query them in PostgreSQL using pgvector.

What are embeddings?

Embeddings capture the “relatedness” of text, images, video, or other types of information. This relatedness is most commonly used for:

  • Search: how similar is a search term to a body of text?
  • Recommendations: how similar are two products?
  • Classifications: how do we categorize a body of text?
  • Clustering: how do we identify trends?

Let's explore an example of text embeddings. Say we have three phrases:

  1. “The cat chases the mouse”
  2. “The kitten hunts rodents”
  3. “I like ham sandwiches”

Your job is to group phrases with similar meaning. If you are a human, this should be obvious. Phrases 1 and 2 are almost identical, while phrase 3 has a completely different meaning.

Although phrases 1 and 2 are similar, they share no common vocabulary (besides “the”). Yet their meanings are nearly identical. How can we teach a computer that these are the same?

Human language

Humans use words and symbols to communicate language. But words in isolation are mostly meaningless - we need to draw from shared knowledge & experience in order to make sense of them. The phrase “You should Google it” only makes sense if you know that Google is a search engine and that people have been using it as a verb.

In the same way, we need to train a neural network model to understand human language. An effective model should be trained on millions of different examples to understand what each word, phrase, sentence, or paragraph could mean in different contexts.

So how does this relate to embeddings?

How do embeddings work?

Embeddings compress discrete information (words & symbols) into distributed continuous-valued data (vectors). If we took our phrases from before and plot them on a chart, it might look something like this:

Vector similarity

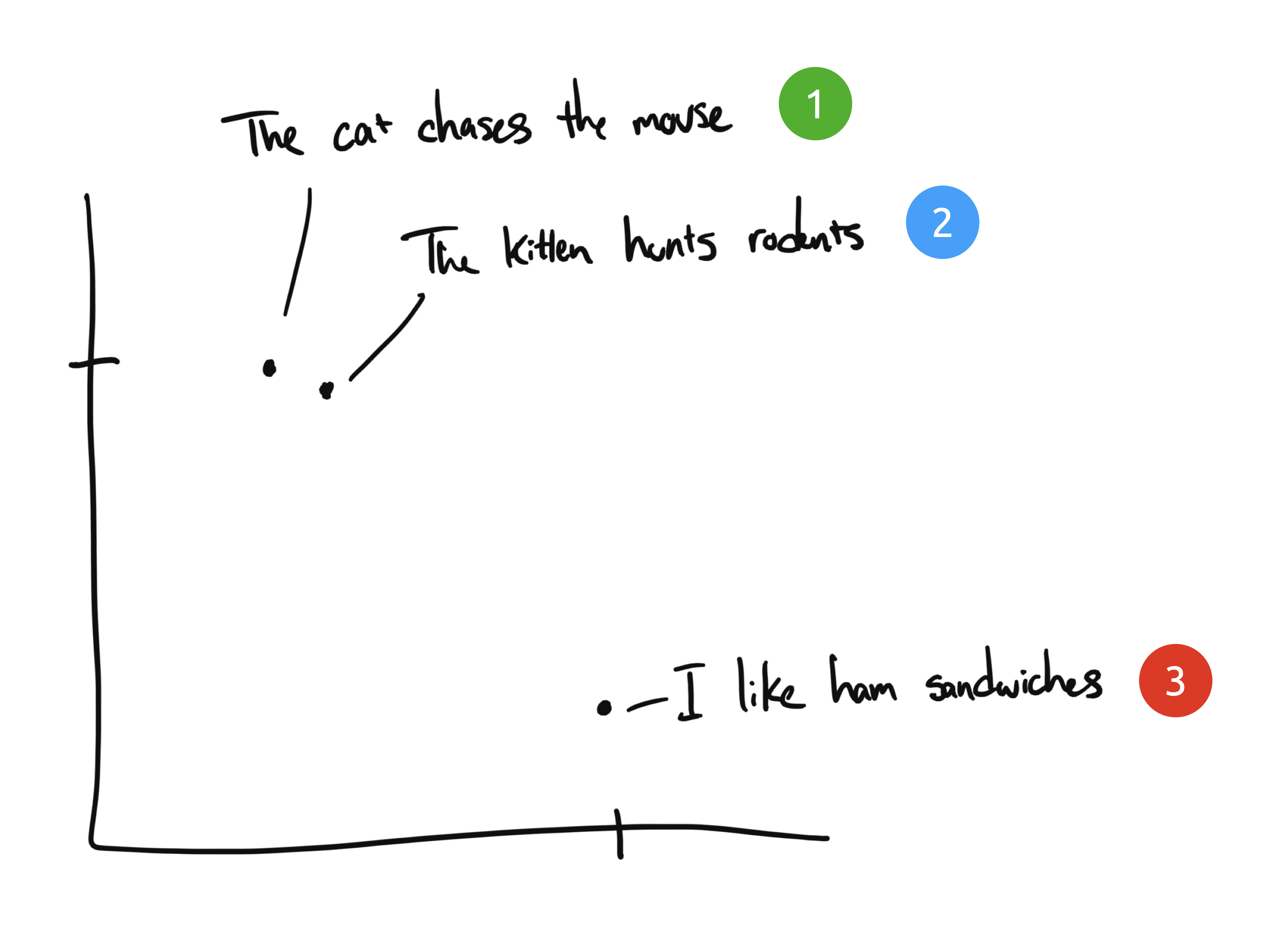

Phrases 1 and 2 would be plotted close to each other, since their meanings are similar. We would expect phrase 3 to live somewhere far away since it isn't related. If we had a fourth phrase, “Sally ate Swiss cheese”, this might exist somewhere between phrase 3 (cheese can go on sandwiches) and phrase 1 (mice like Swiss cheese).

In this example we only have 2 dimensions: the X and Y axis. In reality, we would need many more dimensions to effectively capture the complexities of human language.

OpenAI embeddings

OpenAI offers an API to generate embeddings for a string of text using its language model. You feed it any text information (blog articles, documentation, your company's knowledge base), and it will output a vector of floating point numbers that represents the “meaning” of that text.

Compared to our 2-dimensional example above, their latest embedding model text-embedding-ada-002 will output 1536 dimensions.

Why is this useful? Once we have generated embeddings on multiple texts, it is trivial to calculate how similar they are using vector math operations like cosine distance. A perfect use case for this is search. Your process might look something like this:

  1. Pre-process your knowledge base and generate embeddings for each page
  2. Store your embeddings to be referenced later (more on this)
  3. Build a search page that prompts your user for input
  4. Take user's input, generate a one-time embedding, then perform a similarity search against your pre-processed embeddings.
  5. Return the most similar pages to the user

Embeddings in practice

At a small scale, you could store your embeddings in a CSV file, load them into Python, and use a library like numPy to calculate similarity between them using something like cosine distance or dot product. OpenAI has a cookbook example that does just that. Unfortunately this likely won't scale well:

  • What if I need to store and search over a large number of documents and embeddings (more than can fit in memory)?
  • What if I want to create/update/delete embeddings dynamically?
  • What if I'm not using Python?

Using PostgreSQL

Enter pgvector, an extension for PostgreSQL that allows you to both store and query vector embeddings within your database. Let's try it out.

First we'll enable the Vector extension. In Supabase, this can be done from the web portal through DatabaseExtensions. You can also do this in SQL by running:


_10
create extension vector;

Next let's create a table to store our documents and their embeddings:


_10
create table documents (
_10
id bigserial primary key,
_10
content text,
_10
embedding vector(1536)
_10
);

pgvector introduces a new data type called vector. In the code above, we create a column named embedding with the vector data type. The size of the vector defines how many dimensions the vector holds. OpenAI's text-embedding-ada-002 model outputs 1536 dimensions, so we will use that for our vector size.

We also create a text column named content to store the original document text that produced this embedding. Depending on your use case, you might just store a reference (URL or foreign key) to a document here instead.

Soon we're going to need to perform a similarity search over these embeddings. Let's create a function to do that:


_21
create or replace function match_documents (
_21
query_embedding vector(1536),
_21
match_threshold float,
_21
match_count int
_21
)
_21
returns table (
_21
id bigint,
_21
content text,
_21
similarity float
_21
)
_21
language sql stable
_21
as $$
_21
select
_21
documents.id,
_21
documents.content,
_21
1 - (documents.embedding <=> query_embedding) as similarity
_21
from documents
_21
where 1 - (documents.embedding <=> query_embedding) > match_threshold
_21
order by similarity desc
_21
limit match_count;
_21
$$;

pgvector introduces 3 new operators that can be used to calculate similarity:

OperatorDescription
<->Euclidean distance
<#>negative inner product
<=>cosine distance

OpenAI recommends cosine similarity on their embeddings, so we will use that here.

Now we can call match_documents(), pass in our embedding, similarity threshold, and match count, and we'll get a list of all documents that match. And since this is all managed by Postgres, our application code becomes very simple.

Indexing

Once your table starts to grow with embeddings, you will likely want to add an index to speed up queries. Vector indexes are particularly important when you're ordering results because vectors are not grouped by similarity, so finding the closest by sequential scan is a resource-intensive operation.

Each distance operator requires a different type of index. We expect to order by cosine distance, so we need vector_cosine_ops index. A good starting number of lists is 4 * sqrt(table_rows):


_10
create index on documents using ivfflat (embedding vector_cosine_ops)
_10
with
_10
(lists = 100);

You can read more about indexing on pgvector's GitHub page here.

Generating embeddings

Let's use JavaScript to generate embeddings and store them in Postgres:


_29
import { createClient } from '@supabase/supabase-js'
_29
import { Configuration, OpenAIApi } from 'openai'
_29
import { supabaseClient } from './lib/supabase'
_29
_29
async function generateEmbeddings() {
_29
const configuration = new Configuration({ apiKey: '<YOUR_OPENAI_KEY>' })
_29
const openAi = new OpenAIApi(configuration)
_29
_29
const documents = await getDocuments() // Your custom function to load docs
_29
_29
// Assuming each document is a string
_29
for (const document of documents) {
_29
// OpenAI recommends replacing newlines with spaces for best results
_29
const input = document.replace(/\n/g, ' ')
_29
_29
const embeddingResponse = await openai.createEmbedding({
_29
model: 'text-embedding-ada-002',
_29
input,
_29
})
_29
_29
const [{ embedding }] = embeddingResponse.data.data
_29
_29
// In production we should handle possible errors
_29
await supabaseClient.from('documents').insert({
_29
content: document,
_29
embedding,
_29
})
_29
}
_29
}

Building a simple search function

Finally, let's create an Edge Function to perform our similarity search:


_45
import { serve } from 'https://deno.land/std@0.170.0/http/server.ts'
_45
import 'https://deno.land/x/xhr@0.2.1/mod.ts'
_45
import { createClient } from 'https://esm.sh/@supabase/supabase-js@2.5.0'
_45
import { Configuration, OpenAIApi } from 'https://esm.sh/openai@3.1.0'
_45
import { supabaseClient } from './lib/supabase'
_45
_45
export const corsHeaders = {
_45
'Access-Control-Allow-Origin': '*',
_45
'Access-Control-Allow-Headers': 'authorization, x-client-info, apikey, content-type',
_45
}
_45
_45
serve(async (req) => {
_45
// Handle CORS
_45
if (req.method === 'OPTIONS') {
_45
return new Response('ok', { headers: corsHeaders })
_45
}
_45
_45
// Search query is passed in request payload
_45
const { query } = await req.json()
_45
_45
// OpenAI recommends replacing newlines with spaces for best results
_45
const input = query.replace(/\n/g, ' ')
_45
_45
const configuration = new Configuration({ apiKey: '<YOUR_OPENAI_KEY>' })
_45
const openai = new OpenAIApi(configuration)
_45
_45
// Generate a one-time embedding for the query itself
_45
const embeddingResponse = await openai.createEmbedding({
_45
model: 'text-embedding-ada-002',
_45
input,
_45
})
_45
_45
const [{ embedding }] = embeddingResponse.data.data
_45
_45
// In production we should handle possible errors
_45
const { data: documents } = await supabaseClient.rpc('match_documents', {
_45
query_embedding: embedding,
_45
match_threshold: 0.78, // Choose an appropriate threshold for your data
_45
match_count: 10, // Choose the number of matches
_45
})
_45
_45
return new Response(JSON.stringify(documents), {
_45
headers: { ...corsHeaders, 'Content-Type': 'application/json' },
_45
})
_45
})

Building a smarter search function

ChatGPT doesn't just return existing documents. It's able to assimilate a variety of information into a single, cohesive answer. To do this, we need to provide GPT with some relevant documents, and a prompt that it can use to formulate this answer.

One of the biggest challenges of OpenAI's text-davinci-003 completion model is the 4000 token limit. You must fit both your prompt and the resulting completion within the 4000 tokens. This makes it challenging if you wanted to prompt GPT-3 to answer questions about your own custom knowledge base that would never fit in a single prompt.

Embeddings can help solve this by splitting your prompts into a two-phased process:

  1. Query your embedding database for the most relevant documents related to the question
  2. Inject these documents as context for GPT-3 to reference in its answer

Here's another Edge Function that expands upon the simple example above:


_100
import { serve } from 'https://deno.land/std@0.170.0/http/server.ts'
_100
import 'https://deno.land/x/xhr@0.2.1/mod.ts'
_100
import { createClient } from 'https://esm.sh/@supabase/supabase-js@2.5.0'
_100
import GPT3Tokenizer from 'https://esm.sh/gpt3-tokenizer@1.1.5'
_100
import { Configuration, OpenAIApi } from 'https://esm.sh/openai@3.1.0'
_100
import { stripIndent } from 'https://esm.sh/common-tags@1.8.2'
_100
import { supabaseClient } from './lib/supabase'
_100
_100
export const corsHeaders = {
_100
'Access-Control-Allow-Origin': '*',
_100
'Access-Control-Allow-Headers': 'authorization, x-client-info, apikey, content-type',
_100
}
_100
_100
serve(async (req) => {
_100
// Handle CORS
_100
if (req.method === 'OPTIONS') {
_100
return new Response('ok', { headers: corsHeaders })
_100
}
_100
_100
// Search query is passed in request payload
_100
const { query } = await req.json()
_100
_100
// OpenAI recommends replacing newlines with spaces for best results
_100
const input = query.replace(/\n/g, ' ')
_100
_100
const configuration = new Configuration({ apiKey: '<YOUR_OPENAI_KEY>' })
_100
const openai = new OpenAIApi(configuration)
_100
_100
// Generate a one-time embedding for the query itself
_100
const embeddingResponse = await openai.createEmbedding({
_100
model: 'text-embedding-ada-002',
_100
input,
_100
})
_100
_100
const [{ embedding }] = embeddingResponse.data.data
_100
_100
// Fetching whole documents for this simple example.
_100
//
_100
// Ideally for context injection, documents are chunked into
_100
// smaller sections at earlier pre-processing/embedding step.
_100
const { data: documents } = await supabaseClient.rpc('match_documents', {
_100
query_embedding: embedding,
_100
match_threshold: 0.78, // Choose an appropriate threshold for your data
_100
match_count: 10, // Choose the number of matches
_100
})
_100
_100
const tokenizer = new GPT3Tokenizer({ type: 'gpt3' })
_100
let tokenCount = 0
_100
let contextText = ''
_100
_100
// Concat matched documents
_100
for (let i = 0; i < documents.length; i++) {
_100
const document = documents[i]
_100
const content = document.content
_100
const encoded = tokenizer.encode(content)
_100
tokenCount += encoded.text.length
_100
_100
// Limit context to max 1500 tokens (configurable)
_100
if (tokenCount > 1500) {
_100
break
_100
}
_100
_100
contextText += `${content.trim()}\n---\n`
_100
}
_100
_100
const prompt = stripIndent`${oneLine`
_100
You are a very enthusiastic Supabase representative who loves
_100
to help people! Given the following sections from the Supabase
_100
documentation, answer the question using only that information,
_100
outputted in markdown format. If you are unsure and the answer
_100
is not explicitly written in the documentation, say
_100
"Sorry, I don't know how to help with that."`}
_100
_100
Context sections:
_100
${contextText}
_100
_100
Question: """
_100
${query}
_100
"""
_100
_100
Answer as markdown (including related code snippets if available):
_100
`
_100
_100
// In production we should handle possible errors
_100
const completionResponse = await openai.createCompletion({
_100
model: 'text-davinci-003',
_100
prompt,
_100
max_tokens: 512, // Choose the max allowed tokens in completion
_100
temperature: 0, // Set to 0 for deterministic results
_100
})
_100
_100
const {
_100
id,
_100
choices: [{ text }],
_100
} = completionResponse.data
_100
_100
return new Response(JSON.stringify({ id, text }), {
_100
headers: { ...corsHeaders, 'Content-Type': 'application/json' },
_100
})
_100
})

Streaming results

OpenAI API responses take longer to depending on the length of the “answer”. ChatGPT has a nice UX for this by streaming the response to the user immediately. You can see a similar effect for the Supabase docs:

The OpenAI API supports completion streaming with Server Side Events. Supabase Edge Functions are run Deno, which also supports Server Side Events. Check out this commit to see how we modified the Function above to build a streaming interface.

Wrap up

Storing embeddings in Postgres opens a world of possibilities. You can combine your search function with telemetry functions, add an user-provided feedback (thumbs up/down), and make your search feel more integrated with your products.

The pgvector extension is available on all new Supabase projects today. If you want to try it out, launch a new Postgres database today: database.new

More pgvector and ChatGPT resources

Share this article

Last post

Supabase Clippy: ChatGPT for Supabase Docs

7 February 2023

Next post

Supabase Beta December 2022

5 January 2023

Related articles

Supabase Beta May 2023

Supabase Vecs: a vector client for Postgres

Flutter Hackathon Winners

ChatGPT plugins now support Postgres & Supabase

Building ChatGPT Plugins with Supabase Edge Runtime

Build in a weekend, scale to millions
